Manufacturing

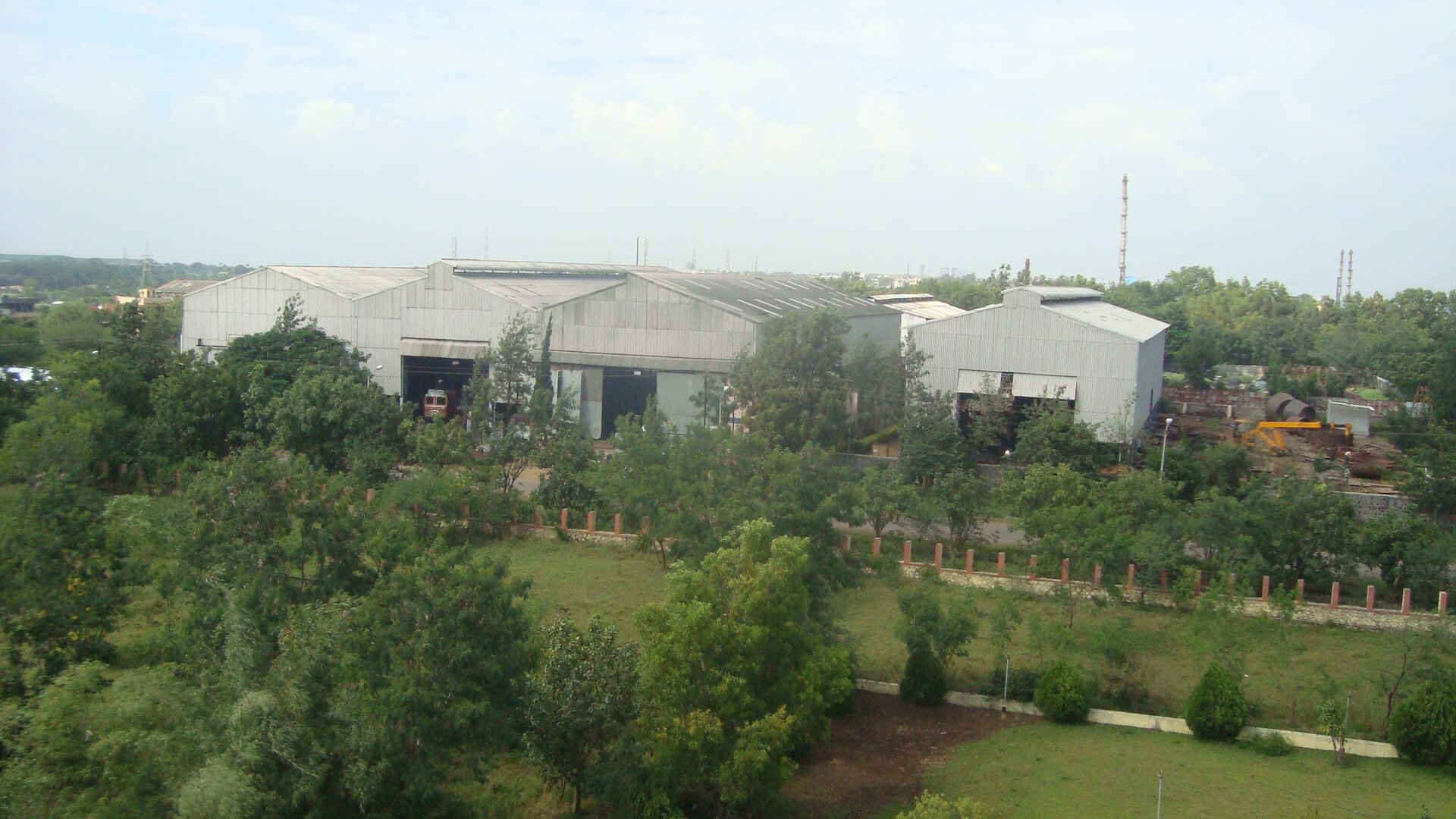

Total area 10,000 sq.mtr
  • Covered Area - 6000 sq.mtr
  • Open Area - 4000 sq.mtr
Height under the hook : 8 mtr
  Delivered Capability
Diameter (mtrs.) 6.3 6.5
Plate Thickness (mm.) 120 120
Overall Length (mtrs.) 56 70
Fabricated Weight (MT) 165 200
T/sheet Thickness (mm.) 275 375
Hydro Test Pressure (Kg/cm sq.) 210 250
Materials Handled - MOC
  • Ferrous: Carbon Steels of all grades & Alloy Steels
  • Non Ferrous : All types of Stainless steel
  • Exotic: Monel, Inconel alloy, Brass and others
MACHINERY List Instrument List
Machinery List
    Qty.
Cutting PLASMA CUTTING UNITS
OXY – ACETYLENE GAS CUTTING SETS
PUG MACHINES
POWER HEX SAW MACHINE 		5
6
4
1
Rolling (In house) PLATE BENDNG MACHINE
HYDRAULIC , THREE ROLL, PRE PINCH TYPE
3.0 mtrs wide x 40 mm thk.
2.5mtrs wide x 32 mm thk.

1
1
Rolling (Hired service) 3.0 mtrs wide x 150 mm thk.
Forming/Dished Ends Pressing (In house) HYDRAULIC PRESS
250 MT * 5000 mm dia * 32 mm thk.
600 MT * 5500 mm dia * 75 mm thk.

1
1
Dished Ends Pressing (Hired Service) 1000 MT * 6500 mm dia * 85 mm thk.
Handling E.O.T. CRANE - 75 MT
- 50 MT
- 35 MT (Under Installation)
CHAIN PULLEY BLOCKS – 3T, 5T, 10T 		1
2
1

Rotators 80 MT
125 MT
 80
80
Welding SUBMERGED ARC WELDING MACHINE WITH COLUMN AND BOOM ARRANGEMENT
HIGH FREQUENCY TIG WELDING UNITS
MIG WELDING MACHINE
WELDING RECTIFIERS
ARGON WELDING UNITS
DC SUPPRESSORS – ALLUMINIUM WELDING
4
8
3
22
12
2
Instrument List
Sr. No. INSTRUMENTS & GUAGES SIZE/RANGE/CAPACITY LEAST COUNT MAKE/MODEL
1. ULTRASONIC THK. TESTER 5 TO 40 MM 0.10 MM IMECO ULTRASONIC.
2. VERNIER CALLIPERS 0 TO 250 MM 0.02 MM MITUTOYO
3. MICRO METERS 0 TO 35 MM 0.01 MM MITUTOYO
4. BORE GUAGES 10 TO 35 MM 0.025 MM MITUTOYO
5. MEASURING TAPES & SCALES 0 T0 30 MTRS. 0 TO 2 MTRS. 1.0 MM 0.5 MM FREEMANS CALIBRATED CMERIKRI STEEL
6. HYDRAULIC PUMPS 0-100 KG/SQ.CM - H WELORE WFF 25/20
7. PRESSURE GUAGES 0-105 KG/SQ.CM 0.2-3 KG / SQ.CM BLUE MAC
8. 0-6 KG / SQ.CM Handling - BROOM & WADER
9. 0-300 AMP Handling 10 A/5 V YO FONG
10. HARDNESS TESTER 0-10 MM DIA INDENTATION 0.1 MM FIRE ENGG. & INST.
11. ELECTRONIC HYDROMETER - - DIEHL GMBH & CO.
12. ELCOMETER FOR PAINT THK. CHECKING 50 TO 500 DF T HIGH & 0 LOW - DIPEL ELECTRONICS PVT. LTD.
13. BEVEL GAUGES - - -
14. TONGTESTER AC/DC 0-1000 AMPS. LUTRON
15. LASER EQUIPMENT FOR ACCURATE MEASUREMENT OF ALIGNMENT - -
